Tool Included
Boring range (mm)
8-58
Boring Hole (mm)
8
Graduation
1 Div.= 0.015 mm
Tools Shank Dia 8 mm
CCMT06 Right Hand Tools
Boring Range (mm)
8-38
35-58
Boring Length (mm)
24
N/A
Adaptable Insert
CCMT06
CCMT06
Ordering Code
BTBH0838-R8-IT2
BTBH0838-MT3-IT2
BTBH0838-ISO30-IT2
BTBH0838-ISO40-IT2
BTBH0838-BT40-IT2
BTBH0838-CAT40-IT2
BTBH0838-SS12-IT2
Shank/ Adaptor
R8/M1TR (M12X1.5)
MT3 (M12X1.75)
ISO30 (M12X1.75) ISO DIN 2080
ISO40 (M16) ISO DIN 2080
BT40 (M16) BT- MAS 403
CAT40 (5/8”) CAT ANSI B5.50
Straight Shank 12 mm

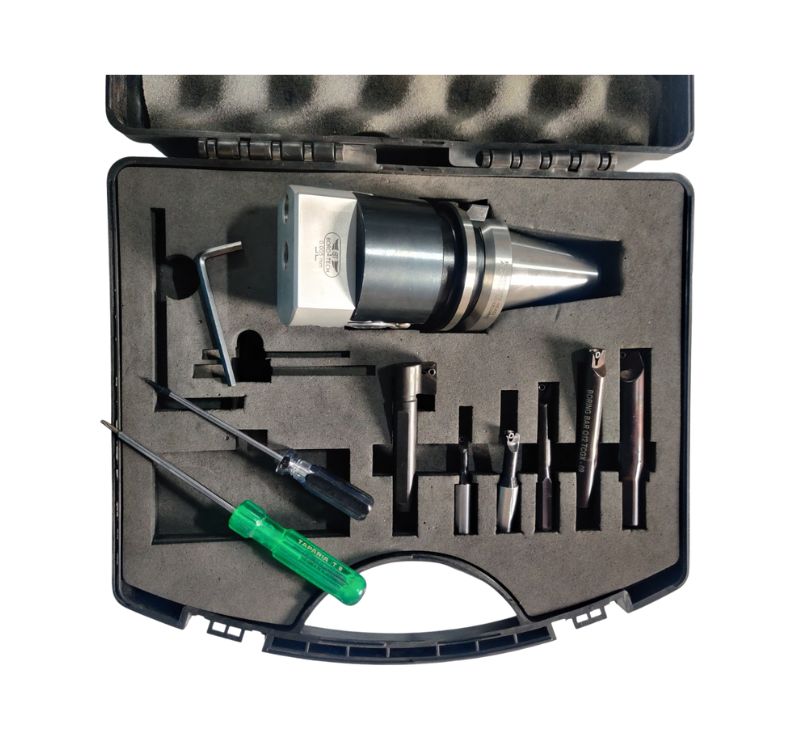

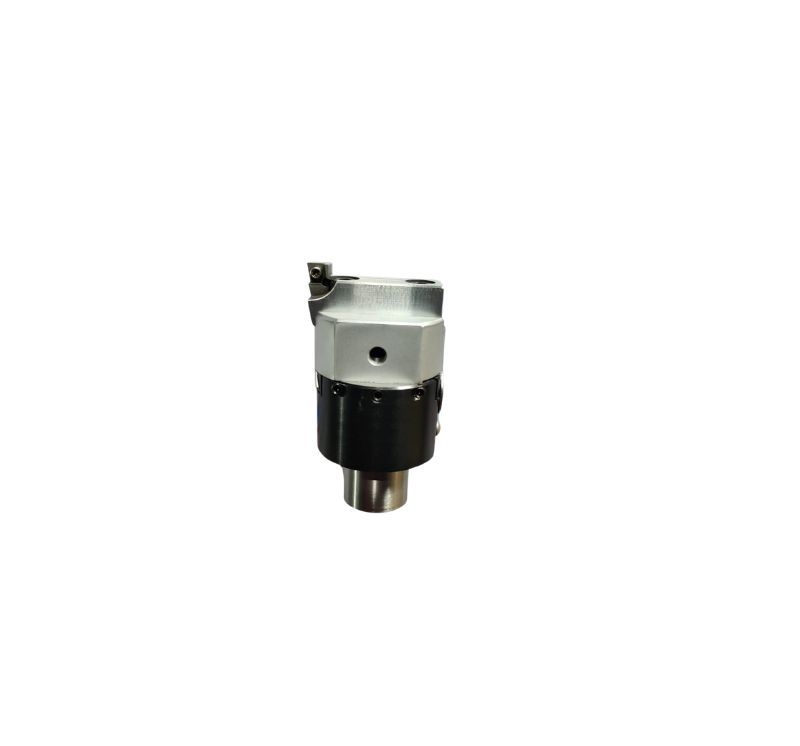

1. Dia 38 mm Micro Boring Head Kit, a Mini Boring Head, is a small size boring head ideal for smaller spindle machines such as BT30, ISO20, etc.
2. The slide is hardened and ground which ensures its stable and sturdy
and also increases the longevity of the unit. There are two vertical holes
and a horizontal hole of 8 mm.
3. The vertical holes can bore from 8 mm to up to 58 mm.
4. The lead screw has an adjustment of 0.015 mm per division and is fitted onto a bronze nut which makes the system free of backlash.
5. It comes pre-fitted with a taper shank like MT2, MT3, R8, BT30, ISO20, or Straight Shank, as per requirement.
6. The boring kit comes with 2 nos. Dia 8 mm CCMT06 Right Hand Tools
7. Inserts are to be purchased separately depending on the material to be
machined.
INSTRUCTION MANUAL- Please follow the instructions given with the kit to
ensure proper usage and prevent damage
