Micro Boring Head 25-250 mm

Tool Included

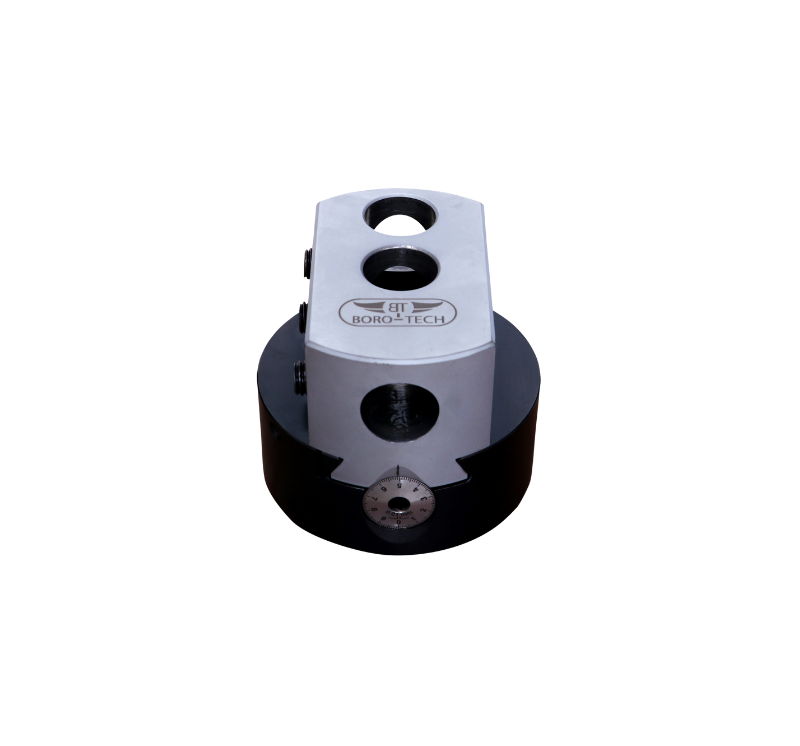

1. Dia 100 mm Micro Boring Head Kit is a big size unit for boring large
diameters at greater depths. It can be used to bore sizes from 25 mm to
up to 250 mm using a set of CCMT09 Right Hand and Left Hand
Indexable Tools.
2. The slide is hardened and ground which ensures its stable and sturdy
and also increases the longevity of the unit. There are two vertical holes
and a horizontal hole of 25 mm.
3. The vertical holes can bore from 25 mm to up to 180 mm. With an offset
of 40 mm, the unit can bore a maximum diameter of 250 mm using a left
hand tool in the horizontal hole.
4. The lead screw has an adjustment of 0.01 mm per division which gives
and adjustment of 20 microns on the diamter.
5. It comes pre-fitted with a taper shank as per requirement.
6. The boring kit comes with 1 nos. Dia 25 mm CCMT09 Right Hand Tools
and 1 Nos. CCMT09 Left Hand Tool:
1. Dia 25 mm CCMT09 Right Hand- 1 nos.
2. Dia 25 mm CCMT09 Left Hand- 1 nos.
7. Inserts are to be purchased separately depending on the material to be
machined.
INSTRUCTION MANUAL- Please follow the instructions given with the kit to
ensure proper usage and prevent damage
