Micro Boring Head

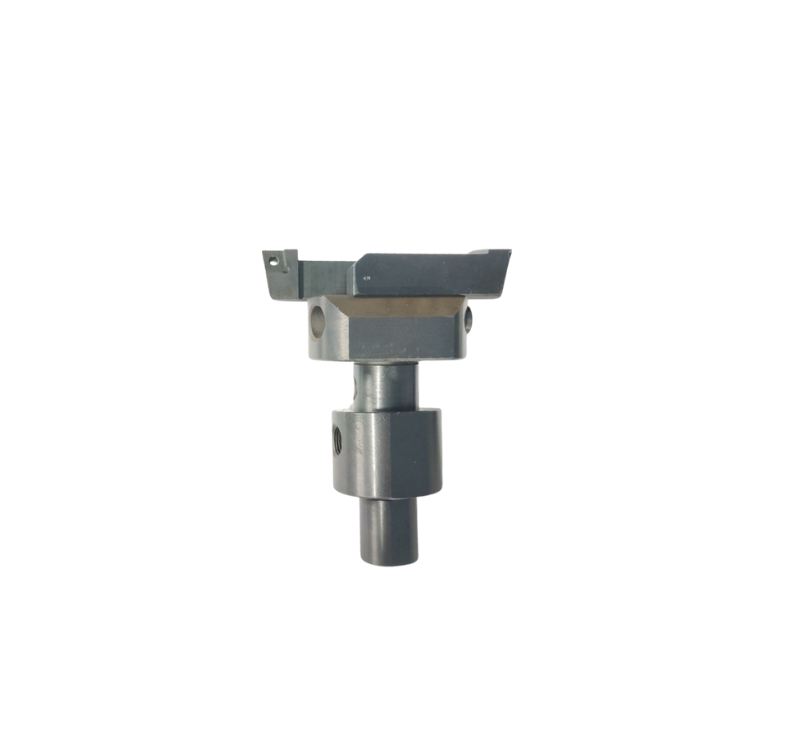

Twin Edge Rough Boring Head 104-124 mm CCMT1204 Inserts
Quick ViewTool Included
1. Twin Edge Rough Boring Head Dia 85 mm for size 104-124 mm with
CCMT1204 Inserts.
2. The adjustment is 1 mm with minimum bore size 104 mm to maximum
124 mm.
3. Using bigger cartridges a size of up to 150 mm can be achieved.
INSTRUCTION MANUAL- Please follow the instructions given with
the kit to ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Length (mm) | Adaptable Insert |
|---|---|---|
| 102–124 | 100–150 | CCMT1204 |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTRB-104 | BT40 (M16×2) |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BTMAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head

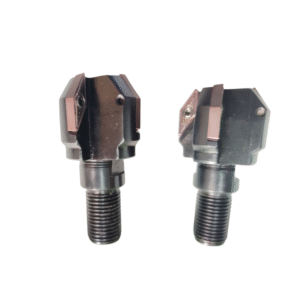

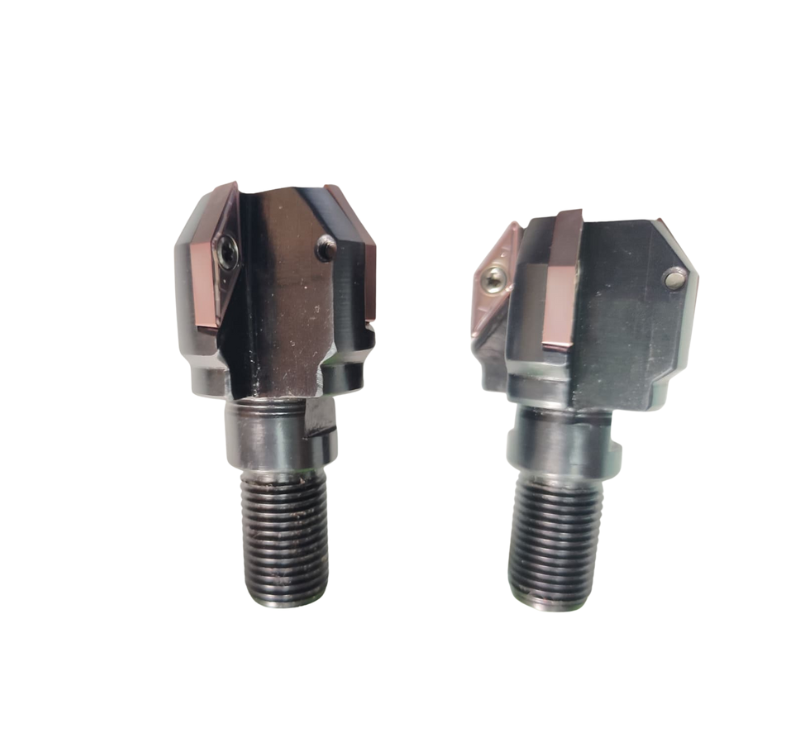

Special Boring Bar Dia 45.8 mm VBMT16 for Deep Boring
Quick ViewTool Included
1. Special Boring Bar VBMT16 using other side for deep boring a size of
45.8 mm in SS304.
2. The boring bar was clamped on a Deep Boring Arbor with female thread
coupling assisting in achieving lengths of up to 300 mm in a Special
Purpose Machine.
3. The cutter has 4 working edges and designed in a way so as to enable
maximum removal of chips using high-pressure coolant flow from the
outside.
INSTRUCTION MANUAL- Please follow the instructions given with
the kit to ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Length (mm) | Adaptable Insert |
|---|---|---|
| Dia 45.8 mm | 300 | VBMT09 |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTDBT-300L | Straight Shank |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BTMAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head

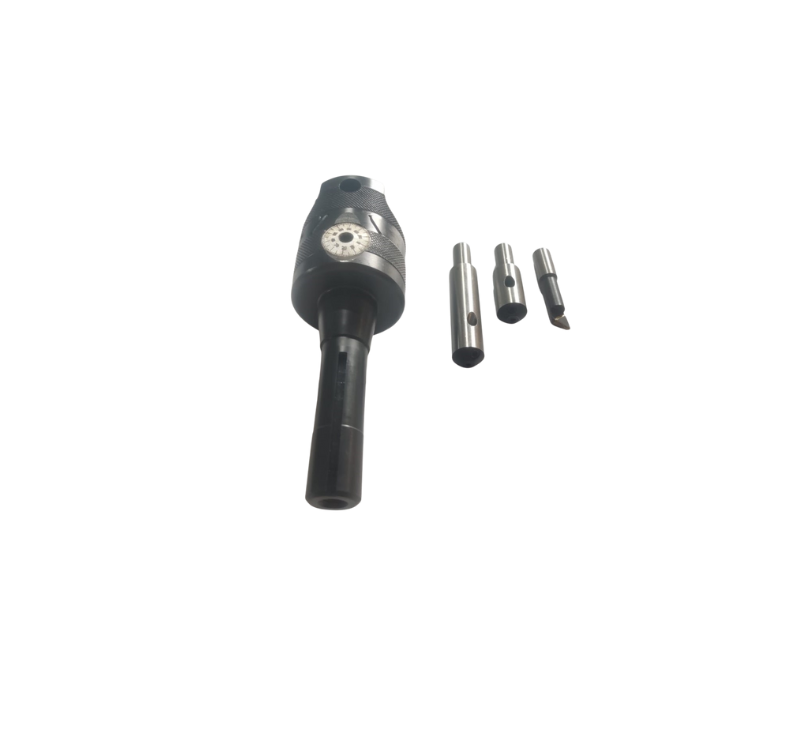

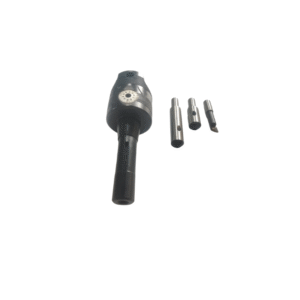

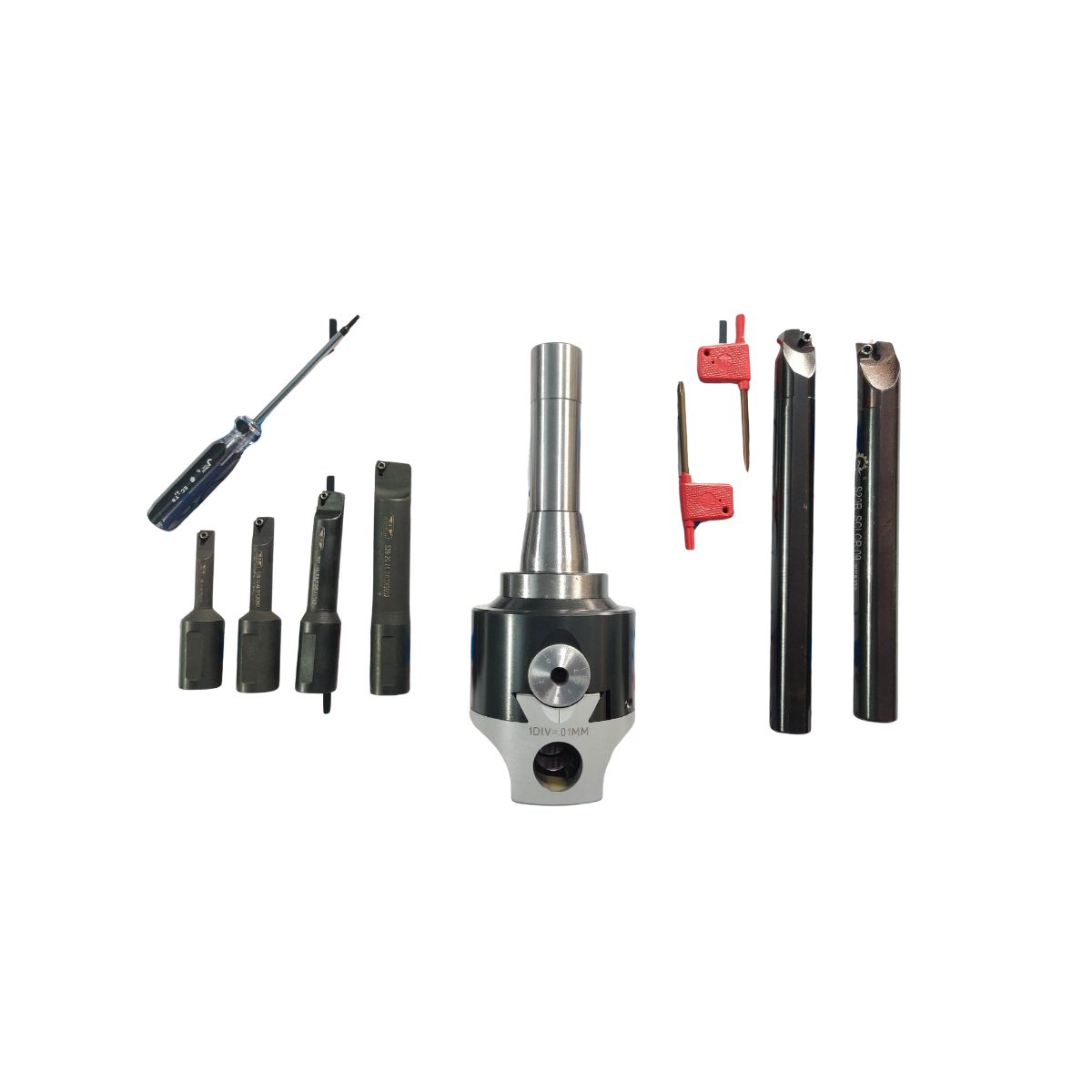

Micro Boring Head Dia 62 mm R8-Integrated Kit
Quick ViewTool Included
1. Dia 62 mm R8-Integrated Micro Boring Head Kit with a boring capacity of
10-
125 mm is a rigid and versatile unit and is a must for any Tool Room
workshop.
2. The Head and R8 Shank (drawbar thread of M12X1.5mm) part are
integrated which reduces vibration to a greater extent and can be used
in applications where rigidity and tolerances are important.
3. With two vertical holes of 12 mm, the unit can take tools with
shank dia 12 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
4. The lead screw has an adjustment of 0.01 mm per division which
gives an adjustment of 20 microns on the diameter.
5. The unit is hardened and ground to ensure sturdity and
increased longevity
6. The Boring Kit comes with 2 nos. Right Hand Indexable Tools
(TPGX0902) with shank Dia 12 mm and a Left Hand Tool
1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos.
2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos.
3. Entry Dia 92 mm TPGX0902- 1 nos.
7. Inserts are to be purchased separately depending on the
material to be machined.
INSTRUCTION MANUAL- Please follow the instructions given with the
kit to ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Hole (mm) | Graduation | Tool Shank Dia. 12 mm |
|---|---|---|---|
| 10–125 | 12 | 1 Div. = 0.01 | Set of 3 Indexable Tools |
| Boring Range (mm) | Boring Length (mm) | Adaptable Insert |
|---|---|---|
| 10–12 | 40 | TPGX0902 |
| 12–100 | 50 | TPGX0902 |
| 92–125 | N/A | TPGX0902 |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTBH1262-R8-IT3 | R8 / M1TR (M12×1.5) |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, BT40 (M16) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head

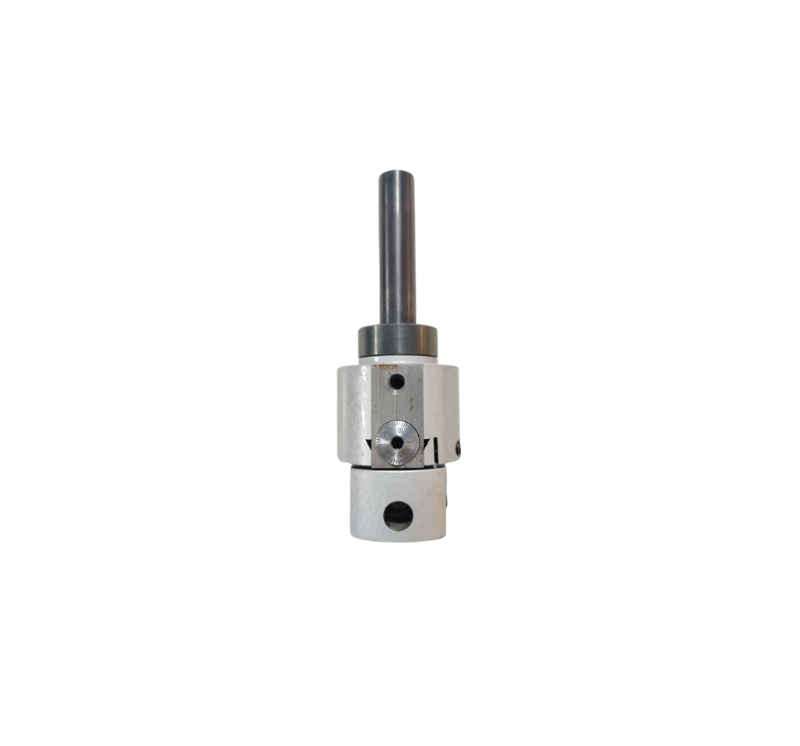

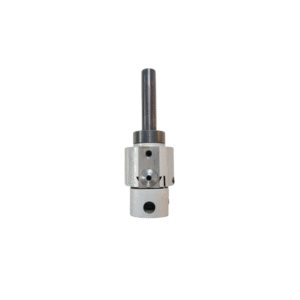

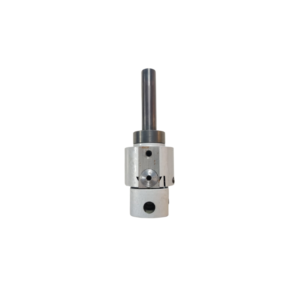

Micro Boring Head Dia 38 mm (Non-Play) Kit with 8 mm Tools and Adaptor
Quick ViewTool Included
1. Dia 38 mm Micro Boring Head Kit, a Mini Boring Head, is a small size boring
head ideal for smaller spindle machines such as BT30, ISO20, etc.
2. The slide is hardened and ground which ensures its stable and sturdy
and also increases the longevity of the unit. There are two vertical holes
and a horizontal hole of 8 mm.
3. The vertical holes can bore from 8 mm to up to 58 mm.
4. The lead screw has an adjustment of 0.015 mm per division and is fitted
onto a bronze nut which makes the system free of backlash.
5. It comes pre-fitted with a taper shank like MT2, MT3, R8, BT30, ISO20, or
Straight Shank, as per requirement.
6. The boring kit comes with 2 nos. Dia 8 mm CCMT06 Right Hand Tools
7. Inserts are to be purchased separately depending on the material to be
machined.
INSTRUCTION MANUAL- Please follow the instructions given with the kit to
ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Hole (mm) | Graduation | Tool Shank Dia. 8 mm |
|---|---|---|---|
| 8–58 | 8 | 1 Div. = 0.015 mm | CCMT06 Right Hand Tools |
| Boring Range (mm) | Boring Length (mm) | Adaptable Insert |
|---|---|---|
| 8–38 | 24 | CCMT06 |
| 35–58 | N/A | CCMT06 |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTBH0838-R8-IT2 | R8 / M1TR (M12×1.5) |
| BTBH0838-MT3-IT2 | MT3 (M12×1.75) |
| BTBH0838-ISO30-IT2 | ISO30 (M12×1.75) ISO DIN 2080 |
| BTBH0838-ISO40-IT2 | ISO40 (M16) ISO DIN 2080 |
| BTBH0838-BT40-IT2 | BT40 (M16) BT–MAS 403 |
| BTBH0838-CAT40-IT2 | CAT40 (5/8”) CAT ANSI B5.50 |
| BTBH0838-SS12-IT2 | Straight Shank 12 mm |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BTMAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head
Micro Boring Head Dia 3″ with Adaptor
Quick ViewTool Included
1. Dia 3″ Micro Boring Head Kit is a sturdy unit for boring large
diameters. It can be used to bore sizes from 3/4″ to up to 5″.
2. This is very useful for boring deeper bores with depths of up to 3-1/4″.
3. The slide is hardened and ground which ensures its stable and sturdy and
also increases the longevity of the unit.
4. There are two vertical holes and a horizontal hole of 3/4″. The vertical
holes can take tools of shank dia 3/4″ and bore from 3/4″ to up to
5″. With an offset of 1″, the unit can bore a maximum diameter
of 6″ using a left hand tool in the horizontal hole.
5. The lead screw has an adjustment of 0.001 thou.
6. It comes pre-fitted with a taper shank such as MT3, R8, ISO30, ISO40, as per
requirement.
INSTRUCTION MANUAL- Please follow the instructions given with the kit to
ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Hole (mm) | Graduation |
|---|---|---|
| 3/4" – 5" | 3/4" | 1 Div. = 0.001 thou |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTBH3"-R8 | R8 / M1TR (7/16") |
| BTBH3"-MT3 | MT3 (M12×1.75) |
| BTBH3"-ISO30 | ISO30 (M12×1.75) ISO DIN 2080 |
| BTBH3"-ISO40 | ISO40 (M16) ISO DIN 2080 |
| BTBH3"-ISO50 | ISO50 (M24) ISO DIN 2080 |
| BTBH3"-BT40 | BT40 (M16) BT–MAS 403 |
| BTBH3"-BT50 | BT50 (M24) BT–MAS 403 |
| BTBH3"-CAT40 | CAT40 (5/8”) CAT ANSI B5.50 |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head
Micro Boring Head 6-125 mm with CAT40 Shank and 6 Nos. TPGX09 Indexable Tools
Quick ViewTool Included
1.Dia 62 mm Micro Boring Head Kit with a boring capacity of 6-125
mm is a versatile unit and is a must for any Tool Room workshop.
2. With two vertical holes of 12 mm, the unit can take tools with
shank dia 12 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
3. The lead screw has an adjustment of 0.01 mm per division which
gives an adjustment of 20 microns on the diameter.
4. It comes pre-fitted with a CAT40 Taper Shank (drawbar thread5/8” X 20 UNF)
5. The unit is hardened and ground to ensure sturdity and increases
longevity.
6. The Boring Kit comes with 5 nos. Right Hand Indexable Tools with
shank Dia 12 mm and 1 Left Hand Tool
1. Entry Dia 6 mm X Boring Length 29 mm- WCGT 0201- 1 nos.
2. Entry Dia 8 mm X Boring Length 37 mm- WCGT 0201- 1 nos.
3. Entry Dia 10 mm X Boring Length 40 mm TPGX0902- 1 nos.
4. Entry Dia 12 mm X Boring Length 50 mm TPGX0902- 1 nos.
5. Entry Dia 16 mm X Boring Length 60 mm TPGX0902- 1 nos.
6. Entry Dia 92 mm TPGX0902- 1 nos.
Inserts are to be purchased separately depending on the material to
be machined.
INSTRUCTION MANUAL- Please follow the instructions given with the
kit to ensure proper usage and prevent damage
Additional information
| Boring range (mm) | Boring hole (mm) | Graduation / Div. | Tools Shank dia 12 mm. | |
|---|---|---|---|---|
| 6 – 125 | 12 | 1 (Div. = 0.01) | Set of 6 indexable tools |
| Boring range (mm) | Boring length (mm) | Adaptable insert |
|---|---|---|
| 6 – 8 | 29 | WCGT 0201 |
| 8 – 10 | 37 | WCGT 0201 |
| 10 – 12 | 40 | TPGX 0902 |
| 12 – 100 | 50 | TPGX 0902 |
| 16 – 100 | 60 | TPGX 0902 |
| 92 – 125 | N/A | TPGX 0902 |
| Ordering code | Shank / Adaptor |
|---|---|
| BTBH1262-CAT40-IT6 | CAT40 (5/8″) CAT ANSI B5.50 |
| Part | Description |
|---|---|
| Shank / Adaptor | CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head

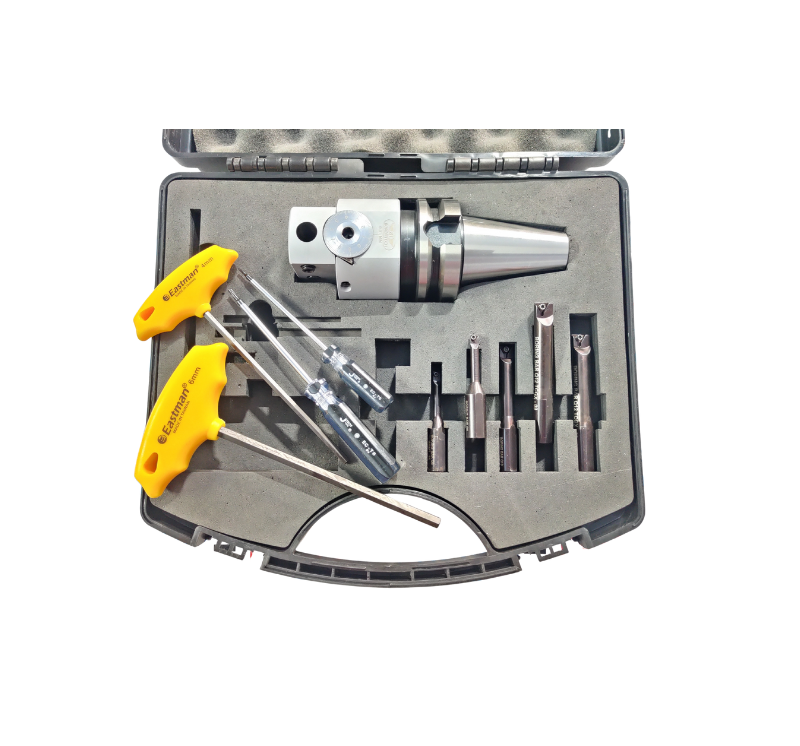

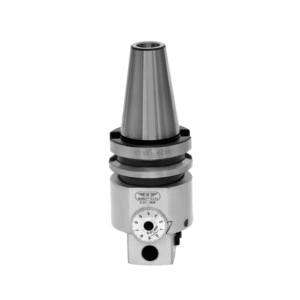

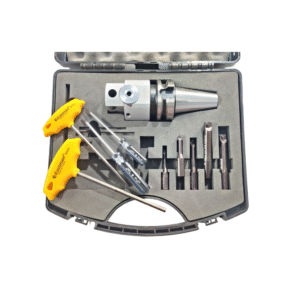

Micro Boring Head 6-125 mm with BT40 Shank and 6 Nos. TPGX09 Indexable Tools
Quick ViewTool Included
1. Dia 62 mm Micro Boring Head Kit with a boring capacity of 6-125
mm is a versatile unit and is a must for any Tool Room workshop.
2. With two vertical holes of 12 mm, the unit can take tools with
shank dia 12 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
3. The lead screw has an adjustment of 0.01 mm per division which
gives an adjustment of 20 microns on the diameter.
4. It comes pre-fitted with a BT40 Taper Shank (drawbar threadM16X2)
5. The unit is hardened and ground to ensure sturdity and increases
longevity.
6. The Boring Kit comes with 5 nos. Right Hand Indexable Tools with
shank Dia 12 mm and 1 Left Hand Tool
1. Entry Dia 6 mm X Boring Length 29 mm- WCGT 0201- 1 nos.
2. Entry Dia 8 mm X Boring Length 37 mm- WCGT 0201- 1 nos.
3. Entry Dia 10 mm X Boring Length 40 mm TPGX0902- 1 nos.
4. Entry Dia 12 mm X Boring Length 50 mm TPGX0902- 1 nos.
5. Entry Dia 16 mm X Boring Length 60 mm TPGX0902- 1 nos.
6. Entry Dia 92 mm TPGX0902- 1 nos.
7. Inserts are to be purchased separately depending on the material
to be machined.
INSTRUCTION MANUAL- Please follow the instructions given with the
kit to ensure proper usage and prevent damage
| Boring range (mm) | Boring hole (mm) | Graduation / Div. | Tools Shank dia. 12 mm | |
|---|---|---|---|---|
| 6 – 125 | 12 | 1 (Div. = 0.01) | Set of 6 indexable tools |
| Boring range (mm) | Boring length (mm) | Adaptable insert |
|---|---|---|
| 6 – 8 | 29 | WCGT 0201 |
| 8 – 10 | 37 | WCGT 0201 |
| 10 – 12 | 40 | TPGX 0902 |
| 12 – 100 | 50 | TPGX 0902 |
| 16 – 100 | 60 | TPGX 0902 |
| 92 – 125 | N/A | TPGX 0902 |
| Ordering code | Shank / Adaptor |
|---|---|
| BTBH1262-BT40-IT6 | BT40 (M16) BT-MAS 403 |
Micro Boring Head

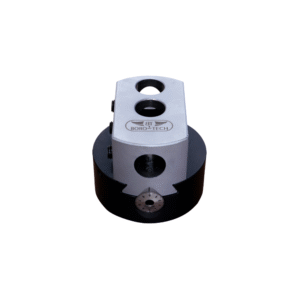

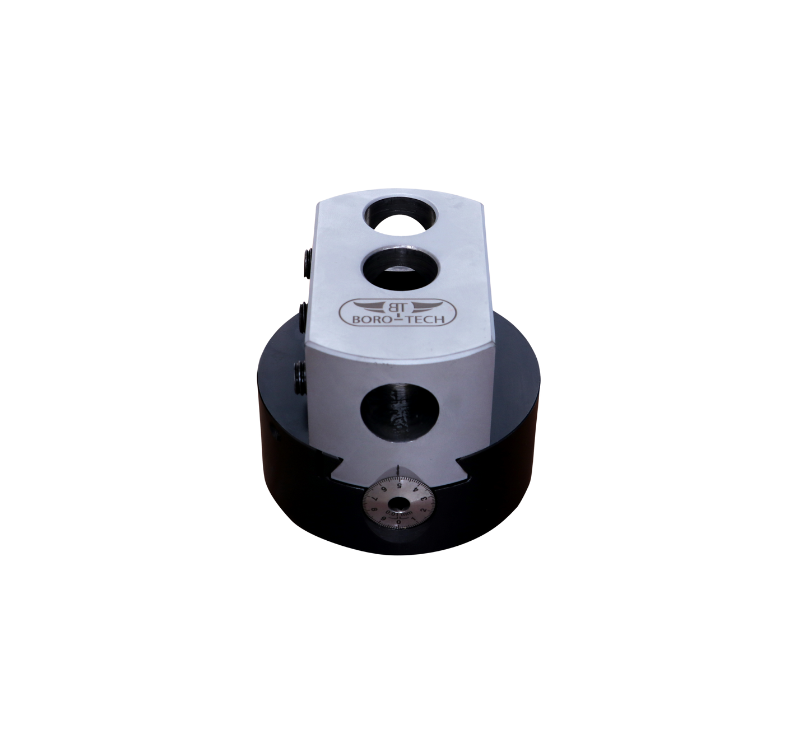

Micro Boring Head 25-250 mm
Quick ViewTool Included
1. Dia 100 mm Micro Boring Head Kit is a big size unit for boring large
diameters at greater depths. It can be used to bore sizes from 25 mm to
up to 250 mm using a set of CCMT09 Right Hand and Left Hand
Indexable Tools.
2. The slide is hardened and ground which ensures its stable and sturdy
and also increases the longevity of the unit. There are two vertical holes
and a horizontal hole of 25 mm.
3. The vertical holes can bore from 25 mm to up to 180 mm. With an offset
of 40 mm, the unit can bore a maximum diameter of 250 mm using a left
hand tool in the horizontal hole.
4. The lead screw has an adjustment of 0.01 mm per division which gives
and adjustment of 20 microns on the diamter.
5. It comes pre-fitted with a taper shank as per requirement.
6. The boring kit comes with 1 nos. Dia 25 mm CCMT09 Right Hand Tools
and 1 Nos. CCMT09 Left Hand Tool:
1. Dia 25 mm CCMT09 Right Hand- 1 nos.
2. Dia 25 mm CCMT09 Left Hand- 1 nos.
7. Inserts are to be purchased separately depending on the material to be
machined.
INSTRUCTION MANUAL- Please follow the instructions given with the kit to
ensure proper usage and prevent damage
Additional information
| Boring range (mm) | Boring hole(mm) | Graduation | Tools shank dia 25 mm |
| 25-250 | 25 | 1 Div.= 0.01 | CCMT09 Boring Tool Right Hand and Left Hand |
| Boring range (mm) | Boring length (mm) | Adaptable insert |
|---|---|---|
| 25 – 180 | 75 | CCMT09 |
| 125 – 250 | N/A | CCMT09 |
| Ordering code | Shank / Adaptor |
|---|---|
| BTBH25100-R8-IT2 | R8 / M1TR (M12 × 1.5) |
| BTBH25100-MT3-IT2 | MT3 (M12 × 1.75) |
| BTBH25100-ISO30-IT2 | ISO30 (M12 × 1.75) ISO DIN 2080 |
| BTBH25100-ISO40-IT2 | ISO40 (M16) ISO DIN 2080 |
| BTBH25100-ISO50-IT2 | ISO50 (M24) ISO DIN 2080 |
| BTBH25100-BT40-IT2 | BT40 (M16) BT-MAS 403 |
| BTBH25100-BT50-IT2 | BT50 (M24) BT-MAS 403 |
| BTBH25100-CAT40-IT2 | CAT40 (5/8″) CAT ANSI B5.50 |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Explore tools
Our best selling products
Micro Boring Head

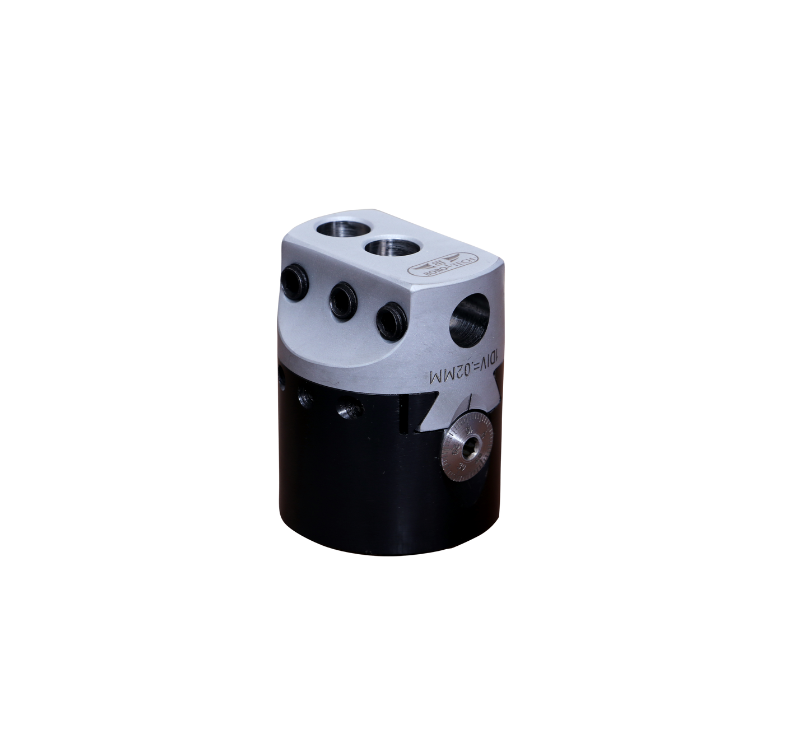

Micro Boring Head 10-80 mm
Quick ViewTool Included
1.Dia. 50 mm Micro Boring Head Kit, also known as a C Type
Boring Head, with a boring capacity of 10-80 mm, is a globally
used model
2. The unit can take tools with shank Dia 12 mm (right hand tools)
and is very useful to bore holes which are not too deep.
3. The lead screw has an adjustment of 0.02 mm per division which
gives an adjustment of 40 microns on the diameter.
4. It comes pre-fitted with a taper shank such as R8, ISO30, ISO40, Mt2, MT3, BT30, BT40, BT50
or straight Shank 25 mm and 32 mm, as per requirement.
5. The slide is hardened and ground to ensure sturdity and
increased longevity.
6. The Boring Kit comes with 2 nos. Right Hand Indexable Tools
(TPGX0902) with shank Dia 12 mm
1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos.
2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos.
7. Inserts are to be purchased separately depending on the
material to be machined.
INSTRUCTION MANUAL- Please follow the instructions given with the
kit to ensure proper usage and prevent damage
Additional information:
| Boring range (mm) | Boring hole(mm) | Graduation | Tools shank dia 12 mm |
| 10-80 | 12 | 1 Div.= 0.02 | TPGX09 Boring Tools – 2 nos. |
| Ordering code | Shank/Adaptor |
|---|---|
| BTBH1250-R8-IT2 | R8/M1TR (M12×1.5) |
| BTBH1250-ISO30-IT2 | ISO30 (M12×1.75) ISO DIN 2080 |
| BTBH1250-ISO40-IT2 | ISO40 (M16) ISO DIN 2080 |
| BTBH1250-ISO50-IT2 | ISO40 (M24) ISO DIN 2080 |
| BTBH1250-MT2-IT2 | MT2 (M10) |
| BTBH1250-MT3-IT2 | MT3 (M12×1.75) |
| BTBH1250-BT40-IT2 | BT40 (M16×2) |
| BTBH1250-BT50-IT2 | BT50 (M24) |
| BTBH1250-CAT40-IT2 | CAT40 (5/8”) |
| Shank/ Adaptor | :R8/M1TR (M12X1.5), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, MT2 (M10), MT3 (M12X1.75) |
Micro Boring Head

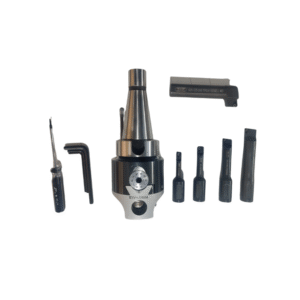

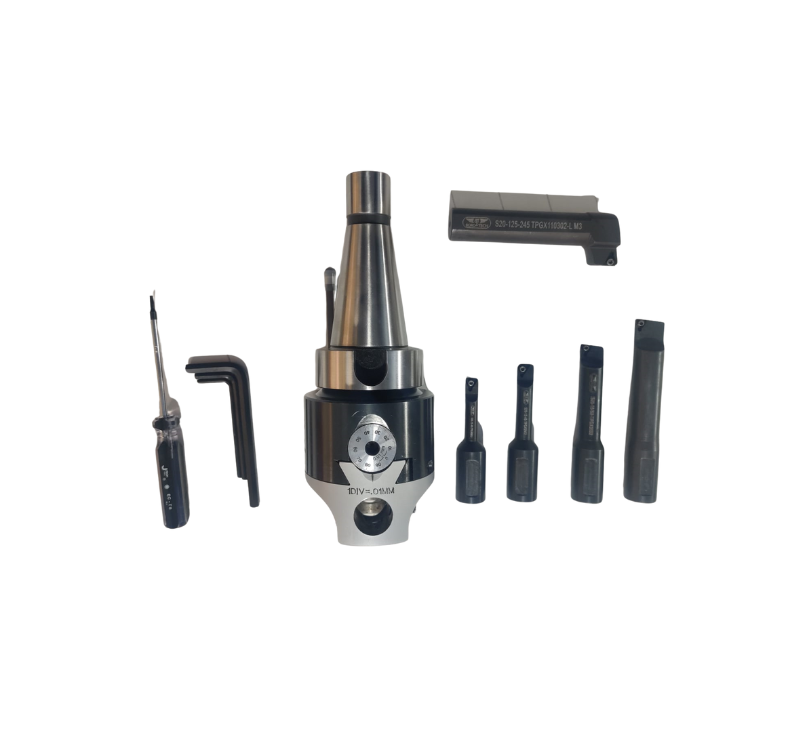

Micro Boring Head 10-180 mm with 5 nos. TPGH09/11 Indexable Tool
Quick ViewTool Included
1.Dia 75 mm Micro Boring Head Kit is a sturdy unit for boring large
diameters. It can be used to bore sizes from 10 mm to up to 175 mm using
a set of TPGX09/TPGX11 Indexable Tools.
2. This is very useful for boring deeper bores with depths of up to 80 mm.
3. The slide is hardened and ground which ensures its stable and sturdy and
also increases the longevity of the unit.
4. There are two vertical holes and a horizontal hole of 20 mm. The vertical
holes can take tools of shank dia 20 mm and bore from 10 mm to up to
125 mm. With an offset of 25 mm, the unit can bore a maximum diameter
of 150 mm using a left hand tool in the horizontal hole.
5. The lead screw has an adjustment of 0.01 mm per division which gives and
adjustment of 20 micron on the diameter.
6. It comes pre-fitted with a taper shank as per requirement.
7. The boring kit comes with 4 nos. Dia 20 mm TPGX09 Right Hand Tools and
1 Nos. TPGX1102 Left Hand Tool:
1. Entry Dia 10 mm X Boring Length 40 mm TPGX0902- 1 nos.
2. Entry Dia 12 mm X Boring Length 48 mm TPGX0902- 1 nos.
3. Entry Dia 16 mm X Boring Length64 mm TPGX0902- 1 nos.
4. Entry Dia 20 mm X Boring Length 80 mm TPGX0902- 1 nos.
5. Entry Dia 105 mm TPGX1102- 1 nos.
Inserts are to be purchased separately depending on the material to be
machined.
INSTRUCTION MANUAL- Please follow the instructions given with the kit to
ensure proper usage and prevent damage
Additional information
| Boring range (mm) | Boring hole(mm) | Graduation | Tools shank dia 20 mm |
| 10-175 | 20 | 1 Div.= 0.01 | TPGH09 Boring Bar R/H- 4 nos. TPGH11 Boring Bar L/H- 1 nos. |
| Boring range (mm) | Boring length(mm) | Adaptable insert |
| 10-12 | 40 | TPGX0902 |
| 12-16 | 48 | TPGX0902 |
| 16-50 | 64 | TPGX0902 |
| 20-125 | 74 | TPGX0902 |
| 105-175 | N/A | TPGX1102 |
| Ordering code | Shank/Adaptor |
|---|---|
| BTBH2075-R8-IT5 | R8/M1TR (M12×1.5) |
| BTBH2075-MT3-IT5 | MT3 (M12×1.75) |
| BTBH2075-ISO30-IT5 | ISO30 (M12×1.75) ISO DIN 2080 |
| BTBH2075-ISO40-IT5 | ISO40 (M16) ISO DIN 2080 |
| BTBH2075-ISO50-IT5 | ISO50 (M24) ISO DIN 2080 |
| BTBH2075-BT40-IT5 | BT40 (M16) BT–MAS 403 |
| BTBH2075-BT50-IT5 | BT50 (M24) BT–MAS 403 |
| BTBH2075-CAT40-IT5 | CAT40 (5/8”) CAT ANSI B5.50 |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head

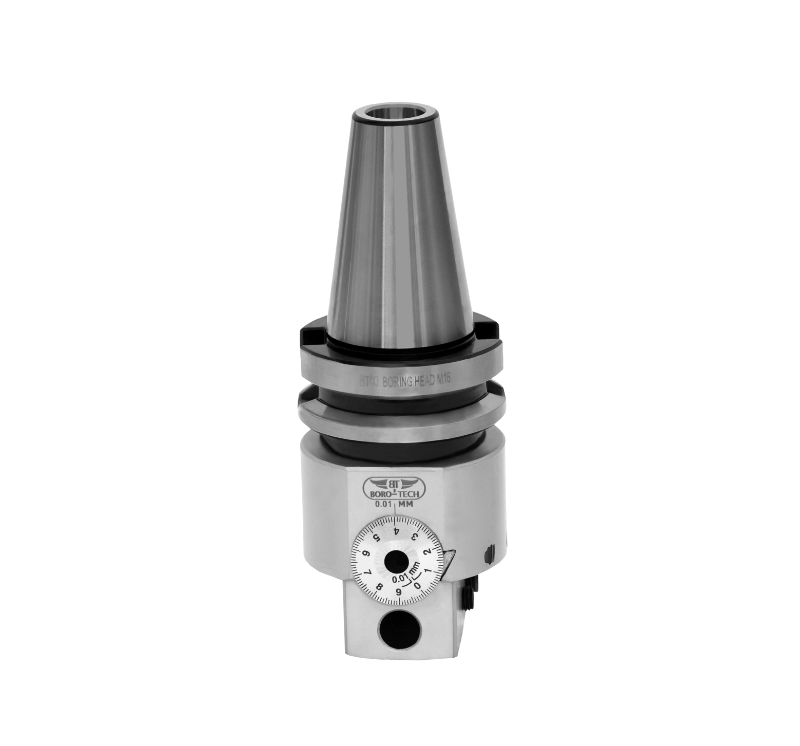

Micro Boring Head 10-125 mm
Quick ViewTool Included
Dia 62 mm Micro Boring Head Kit with a boring capacity of 10-
125 mm is a versatile unit and is a must for any Tool Room
workshop.
1. With two vertical holes of 12 mm, the unit can take tools with
shank dia 12 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
2. The lead screw has an adjustment of 0.01 mm per division which
gives an adjustment of 20 microns on the diameter.
3. It comes pre-fitted with a taper shank as per requirement.
4. The unit is hardened and ground to ensure sturdity and
increased longevity
5. The Boring Kit comes with 2 nos. Right Hand Indexable Tools
(TPGX0902) with shank Dia 12 mm and a Left Hand Tool
1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos.
2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos.
3. Entry Dia 92 mm TPGX0902- 1 nos.
6. Inserts are to be purchased separately depending on the
material to be machined.
INSTRUCTION MANUAL- Please follow the instructions given with the
kit to ensure proper usage and prevent damage
Additional information:
| Boring range (mm) | Boring hole(mm) | Graduation | Tools shank dia 12 mm |
| 10-125 | 12 | 1 Div.= 0.01 | Set of 3 Indexable Tools |
| Boring range (mm) | Boring length (mm0 | Adaptable insert |
| 10-12 | 40 | TPGX0902 |
| 12-100 | 50 | TPGX0902 |
| 92-125 | N/A | TPGX0902 |
| Ordering code | Shank/adaptor |
| BTBH1262-R8-IT3R8 | R8/M1TR (M12X1.5) |
| BTBH1262-MT3-IT3 | MT3 (M12X1.75) |
| BTBH1262-ISO30- IT3 | ISO30 (M12X1.75) ISO DIN 2080 |
| BTBH1262-ISO40- IT3 | ISO40 (M16) ISO DIN 2080 |
| BTBH1262-BT40- IT3 | BT40 (M16) BTMAS 403 |
| BTBH1262-CAT40- IT3 | CAT40 (5/8”) CAT ANSI B5.50 |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, BT40 (M16) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head
Twin Edge Rough Boring Head 104-124 mm CCMT1204 Inserts
Quick ViewTool Included
1. Twin Edge Rough Boring Head Dia 85 mm for size 104-124 mm with
CCMT1204 Inserts.
2. The adjustment is 1 mm with minimum bore size 104 mm to maximum
124 mm.
3. Using bigger cartridges a size of up to 150 mm can be achieved.
INSTRUCTION MANUAL- Please follow the instructions given with
the kit to ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Length (mm) | Adaptable Insert |
|---|---|---|
| 102–124 | 100–150 | CCMT1204 |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTRB-104 | BT40 (M16×2) |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BTMAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head
Special Boring Bar Dia 45.8 mm VBMT16 for Deep Boring
Quick ViewTool Included
1. Special Boring Bar VBMT16 using other side for deep boring a size of
45.8 mm in SS304.
2. The boring bar was clamped on a Deep Boring Arbor with female thread
coupling assisting in achieving lengths of up to 300 mm in a Special
Purpose Machine.
3. The cutter has 4 working edges and designed in a way so as to enable
maximum removal of chips using high-pressure coolant flow from the
outside.
INSTRUCTION MANUAL- Please follow the instructions given with
the kit to ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Length (mm) | Adaptable Insert |
|---|---|---|
| Dia 45.8 mm | 300 | VBMT09 |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTDBT-300L | Straight Shank |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BTMAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
Micro Boring Head
Micro Boring Head Dia 62 mm R8-Integrated Kit
Quick ViewTool Included
1. Dia 62 mm R8-Integrated Micro Boring Head Kit with a boring capacity of
10-
125 mm is a rigid and versatile unit and is a must for any Tool Room
workshop.
2. The Head and R8 Shank (drawbar thread of M12X1.5mm) part are
integrated which reduces vibration to a greater extent and can be used
in applications where rigidity and tolerances are important.
3. With two vertical holes of 12 mm, the unit can take tools with
shank dia 12 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
4. The lead screw has an adjustment of 0.01 mm per division which
gives an adjustment of 20 microns on the diameter.
5. The unit is hardened and ground to ensure sturdity and
increased longevity
6. The Boring Kit comes with 2 nos. Right Hand Indexable Tools
(TPGX0902) with shank Dia 12 mm and a Left Hand Tool
1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos.
2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos.
3. Entry Dia 92 mm TPGX0902- 1 nos.
7. Inserts are to be purchased separately depending on the
material to be machined.
INSTRUCTION MANUAL- Please follow the instructions given with the
kit to ensure proper usage and prevent damage
Additional information
| Boring Range (mm) | Boring Hole (mm) | Graduation | Tool Shank Dia. 12 mm |
|---|---|---|---|
| 10–125 | 12 | 1 Div. = 0.01 | Set of 3 Indexable Tools |
| Boring Range (mm) | Boring Length (mm) | Adaptable Insert |
|---|---|---|
| 10–12 | 40 | TPGX0902 |
| 12–100 | 50 | TPGX0902 |
| 92–125 | N/A | TPGX0902 |
| Ordering Code | Shank / Adaptor |
|---|---|
| BTBH1262-R8-IT3 | R8 / M1TR (M12×1.5) |
| Shank/ Adaptor | R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, BT40 (M16) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50 |
20% OFF EVERYTHING FOR AVAILABLE ITMES, DON’T MISS THIS! USE CODE:
Subscribe to get 30% discount!
[mc4wp_form id=326]
To see how we may use your information, take a look at our privacy policy.
Delightful Discounts
Today's top pick
Customer reviews
Read experience of our tools that speak louder than just Words, Get all types of reviews from quality our prime members
Trusted by 25,000+ happy customers are using our items.
